MY6812 DC 12V 150W High Speed Motor with Sprocket – For Scooters & Small Electric Motorcycles

Product Overview

Brand new aftermarket MY6812 DC brush motor designed for scooters and small electric motorcycles. Operating at 12V with a 150W power output, this motor provides high-speed performance with 3350 RPM unloaded speed and stable torque of 0.52 Nm at 2750 RPM. Built with durable steel construction and high efficiency (up to 78%), it is ideal for reliable and long-lasting use. Supplied complete with sprocket for easy integration into your drivetrain system.

Features

– DC brush motor, MY6812 specification
– 12V operating voltage with 150W output power
– High speed: 3350 RPM unloaded, 2750 RPM rated
– Rated torque: 0.52 Nm
– Rated current: 14.5 / 7.15 A (dual current characteristics)
– Unloaded current: 1.2 / 0.6 A
– Efficiency: 78%

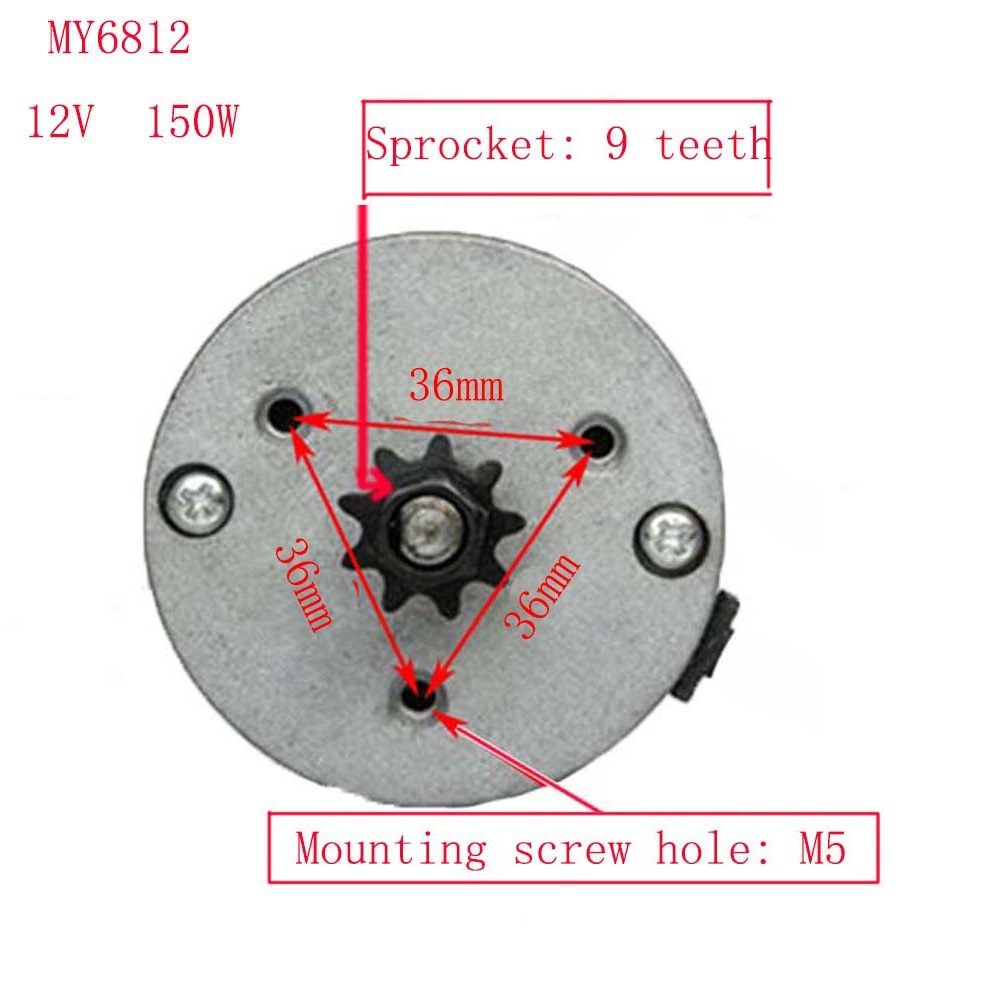

– Supplied with sprocket for direct installation
– Suitable for scooters and small electric motorcycles

Specifications

– Material: Steel
– Voltage: DC 12V
– Power: 150W
– Unloaded Speed: 3350 RPM
– Rated Speed: 2750 RPM
– Rated Torque: 0.52 Nm
– Rated Current: 14.5 / 7.15 A
– Unloaded Current: 1.2 / 0.6 A
– Efficiency: 78%

Applications

– Scooters
– Small electric motorcycles
– Custom e-mobility projects requiring 12V DC brush motors

Package Includes

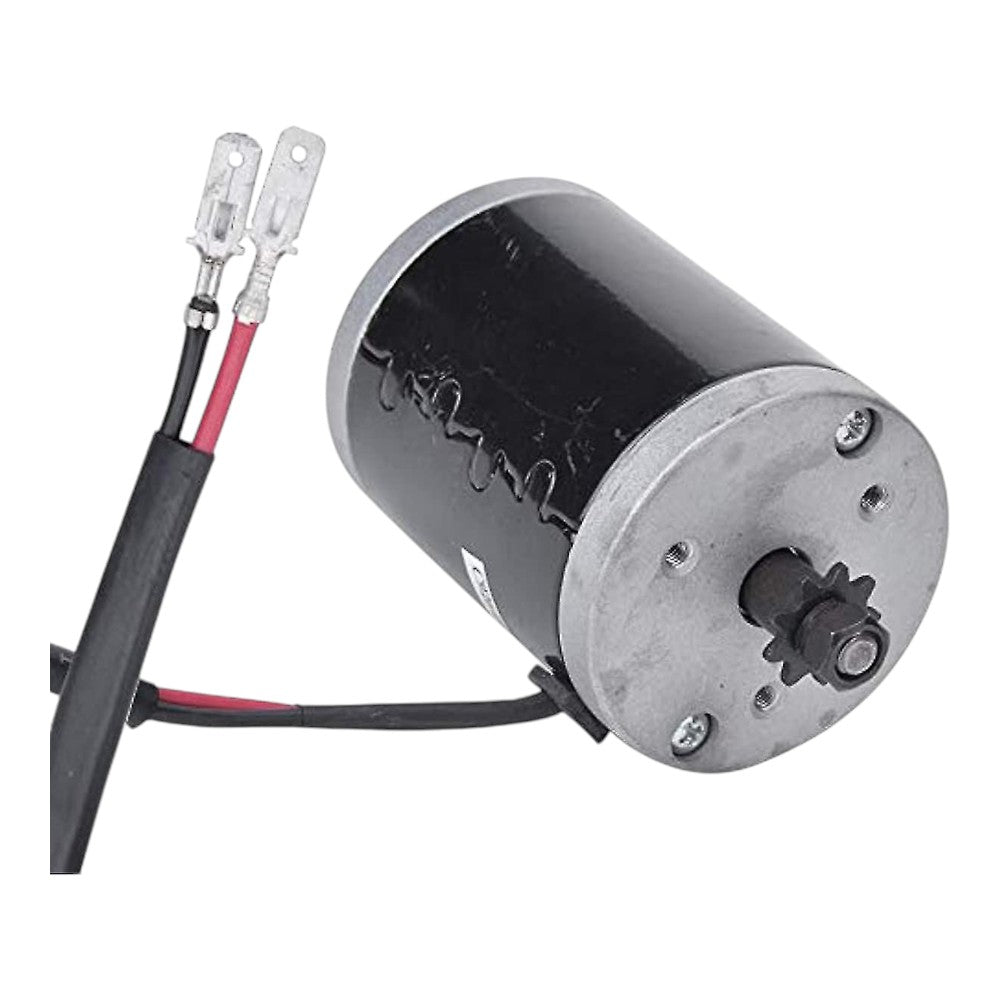

1 × MY6812 DC 12V 150W High Speed Motor with Sprocket

Additional Information

NZ stock – ready for fast dispatch
GST invoice available on request
1–2 working days delivery (allow extra time for rural areas)
